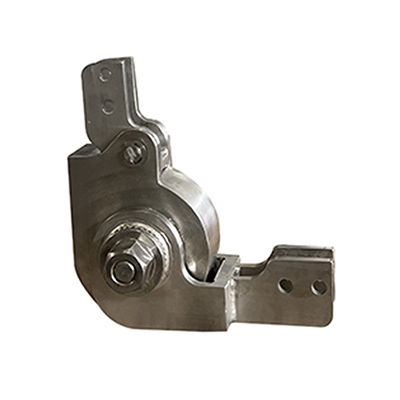

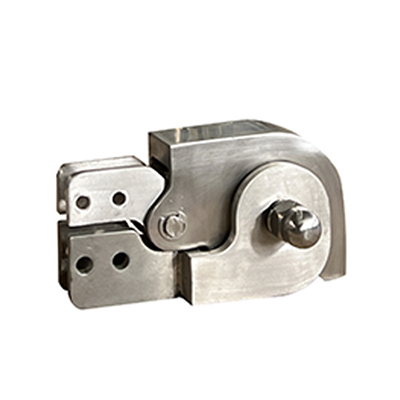

Feature overview

1.Easy and safe to open the lid. Using the special mechanical structure to avoid accident.

2.Auto-hold at the various position and prevents the tiny rubbish to drop down.

3.Easy specification of the balancer can apply to the different lids.

4.Easy to adjust the torque with the visuality function, constant power can be worked with in the usage.

5.Easy to assemble. The design of integrative structure and the special spring make it completely free maintenance.

6.Opening the lids aslant can be allowed, the maximum oblique angle of W10-W50 is 40 and the maximum obligue angle of W70-W350 is 30, it depends on the torque calculation under the different oblique angle.

Product Parameters

Installation and commissioning instruction

1.Confirm the minimum gap between the base and the top cover, then measure the minimum distance between the cover and the base.

2.Make sure the COB (Connection panel Of the Balancer) and the COc (connection panel of the top cover) are parallel to each other. please use the horizontal adjustment bolt or install the auxiliary washer.

3.According to the size of the base and top cover, making-off the COB and cutting.

4.Welding the cOB, the base plate of top cover and the preassembled accessory together.

5.Confirm the welding strength then do the preliminary test.

5.1 Open the top cover to the position with maximum angle

5.2 For w10-w5o, Rotate the torque adjuster to the opening direction, enhance the pre-torque and screw the bolts firmly.

For w70-w350, Rotate the torque adjuster into the adjustment hole in order of (1)- (2), fix and enhance the pre-torque.

5.3 Under the condition of protection, please close the top cover. Also it should be hold between 10-20° smoothly otherwise please retry the Step.5.2 again.

5.4 Welding and make sure the welding strength quality, rubbing down smoothly.

6.Fine-tuning the opening cover angle (horizontal adjustment bolts) if need.

7.For it needs to keep opening statue or person need to operate into the lid during the working process.After the top cover is opened completely, secure the bolts in the anti-dump spout.

Lid balancer: Applications, Usage Instructions, and Common Issues

A lid balancer is an essential mechanical or pneumatic device that provides controlled lifting, positioning, and lowering of heavy lids, covers, or hatches. It is designed to counterbalance weight, enhance safety, and improve user efficiency. Whether in industrial plants, laboratories, marine vessels, or commercial kitchens, lid balancers play an important role in ensuring smooth operation and preventing accidents caused by uncontrolled lid movement. This article explores the key application scenarios, proper usage instructions, and frequently encountered issues with lid balancers, offering a comprehensive guide for engineers, operators, and equipment owners.

Application Scenarios of Lid Balancers

Lid balancers are versatile and can be applied across different industries where heavy lids or covers require frequent handling. Some of the most common scenarios include:

1. Industrial Machinery and Equipment

In factories, many machines have protective covers or inspection hatches. A lid balancer allows workers to open these covers effortlessly for maintenance, cleaning, or inspection. Without such a system, lifting a heavy lid could cause injury or downtime.

2. Storage Boxes and Containers

Large storage bins, toolboxes, and chemical containers often feature heavy lids that need secure positioning. A balancer ensures the lid stays open at the desired angle, preventing accidental closure that could damage materials or harm the operator.

3. Marine Applications

On ships and offshore platforms, hatch covers are typically large and exposed to harsh environments. Lid balancers are used to control these covers, ensuring reliable operation despite constant motion and salty air.

4. Food Processing and Pharmaceutical Equipment

Mixers, kettles, and other processing equipment often include lids that need to be opened for ingredient loading or cleaning. Balancers provide hygienic and safe handling, reducing operator strain in repetitive tasks.

5. Automotive and Transportation

Vehicle toolboxes, truck compartments, and bus engine covers benefit from lid balancers. They reduce manual force and make frequent access to equipment safer and more convenient.
